Anti-SLIP ALUMINUM StAIR TREAD
Anti-slippery stair treads are available in stainless steel, carbon steel, or aluminum checkered plates. Aluminum stair treads are versatile anti-slippery and anti-skidding metal panels to add permanent slip resistance covers to floors, ramps, stairs, and docks.
Checkered Stair Treads
Non-slip aluminum stair tread has high rigidity and skid resistance, ideal for vehicle flooring and anti-skid treads. Checkered stair tread has a male/female interlocking design and can be installed over structural sheets to provide a solid, skid resistant flooring.
Aluminum stair tread plates can be used to cover surfaces with holes to allow for wheelchair and high heel traffic. Optional edge bands or wedges along the length of the metal panels, make it easier for wheelchairs and other wheel cart traffic to roll up onto the floor surface. Two styles of edge bands are available.
Aluminum Alloy: 1100, 3003, 5052
Temper: H14, H16, H18 H24, H32, H112;
Pattern: Two bars, three bars, five bars, diamond bars.
Thickness: 1.0 - 5.0mm; Width: 500 ~ 2000mm
Anti Skidding Non Slippery Stair Treads Features:
• Available in solid or punched
• Slip resistant
• Lightweight
• Easy to install
• Corrosion resistant
• Attractive
• Versatile
• Self cleaning
Aluminum stair treads surface flooring designed for outdoor use

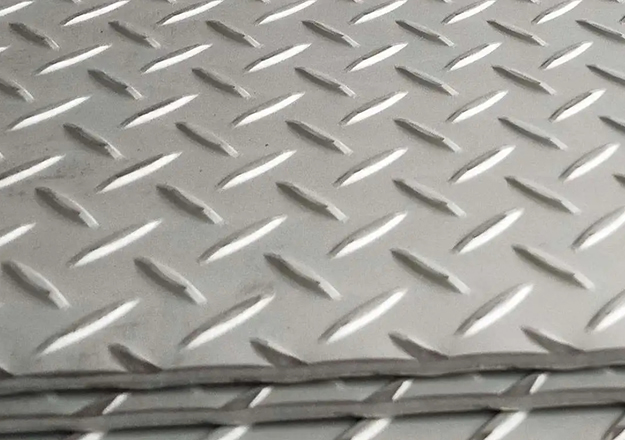

Aluminum stair tread checkered plates with one bar diamond design

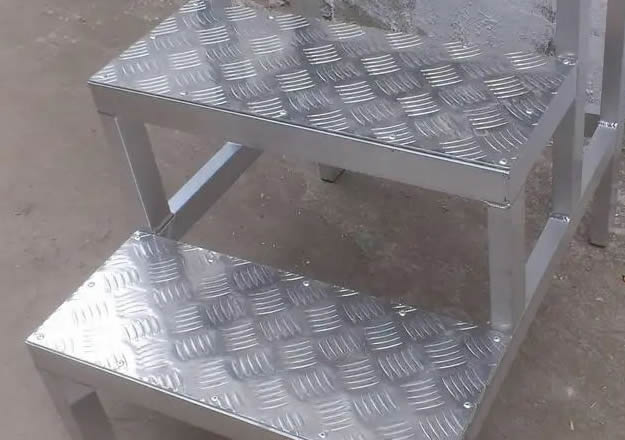

Non-slip aluminum alloy checkered stair tread over metal structure

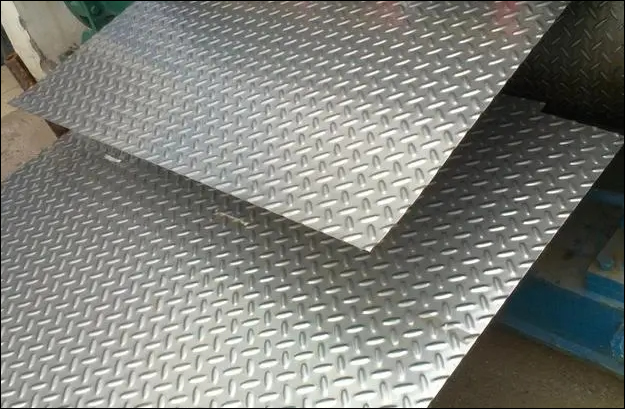

Aluminum alloy anti-skid checkered plate for foot treads
Stair treads are also supplied in metal grating types in plain and slip resistant serrated surfaces.
Safety Step Bar Grating Panels are used to support heavy loads than checkered stair treads, mainly used for trucks, trenches, mezzanines, walkways, work platforms, and other safety steps.
Metallic Bar Type Stair Treads for Stafety Step
For industrial application
Open steel bar grating tread
Manufacturing process: pressure welding
Steel material: BS 4360 GRADE 43A
DIN 17100 -ST.52-3U
Coating hot dip galvanized
Standard, external, BS 729
Weight of coating 815 g/cm3
Pitch, load-bearing bars 33 mm
Pitch, transverse bars 100 mm
Bar arrangement 33/100
Bar type: load-bearing bars serrated
Size, load-bearing bars 35 mm x 5 mm
Bar type: transverse bars square twisted
Size, transverse bars 6 mm x 6 mm
End and edge:
End plate flat with holes
Size of end plate 185 mm x 60 mm x 3 mm
Front edge anti slip covering
Length 915 mm
Width of stair tread 215 mm
