Checkered Plate Machine - metal sheet Embossing Equipment, Production Line
Chequer (also written as Checkered) plate embossing machine is mainly for producing anti-skidding checkered steel and aluminum plates. The chequered pattern can be custom designed. The metal plate thickness varies according to application.
Machine Roller Specifications: DIA450~500mm, Checkered Plate
Width:1000~1800mm.
Pattern: checkered by laser engraving.
Pressure mode: hydraulic 50~100T.
Working speed: 1~20m/min, speed changed by frequency converter.
The chequered plate processing machine can be used for production of metal checker plates, it is also used for leather embossing and other uses.
Main technical data for chequer plate machine:
Suitable plate | 0.2-0.5*1250mm |
Production speed | 0-25m/min |
Pressure adjusting | By guiding screw |
Pattern form | Double-layer |
Motor power | 11KW |
Power supply | 380V, 3Phase, 50Hz or as required |
Roller size | D400*L1400mm |
Machine dimension | 3300*1200*1500mm |

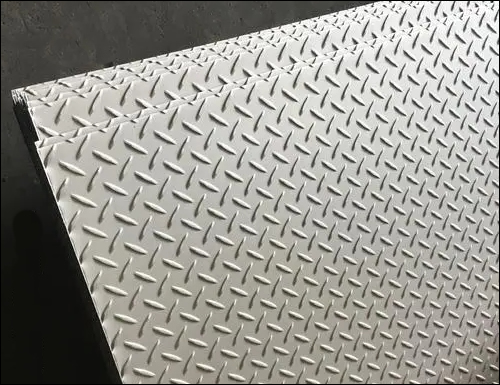

Aluminum and steel checker plate production machinery, for producton of following embossed metal sheets:
Raw Material Plate: Stainless Steel (201 J1/J4 & 304), Carbon Steel, Aluminum
Plate Width: < 1500 mm
Plate Thickness: 1-3 mm

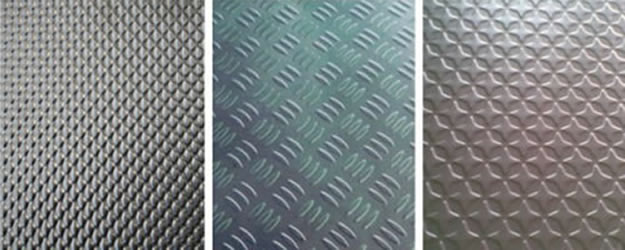

Main Chequered Patterns of Metal Sheets:

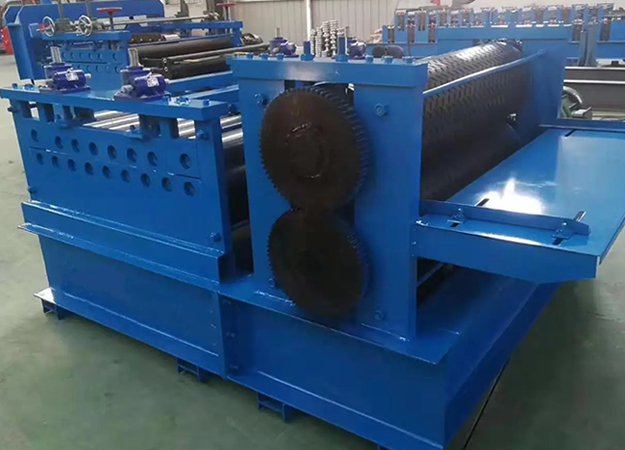

Checkered Plate Machine for Metal Sheet Thickness 5mm Max.:
Checker plate machine for the following:
Material: HR carbon steel plate
Max width: 1.22m
Max length:2.44m
Max thickness:5mm
Embossed checkered depth 1mm

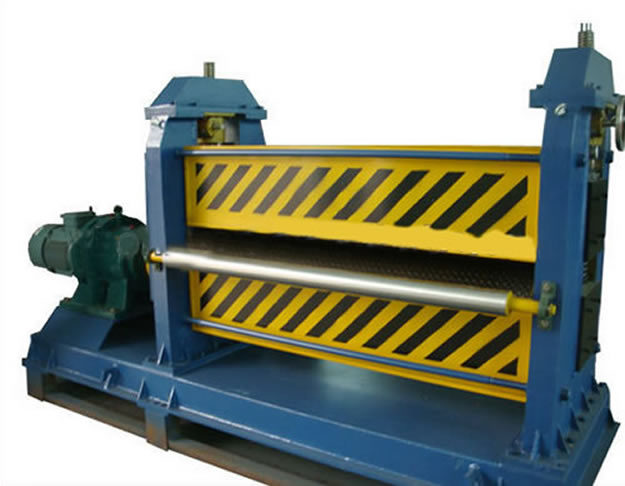

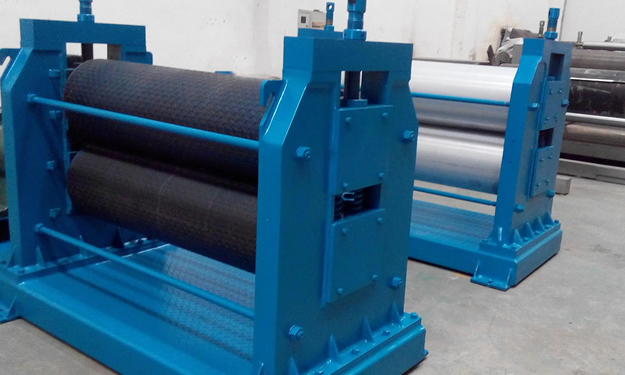

Checker plate embossing machine for sheet thickness 0.5-2.5 mm:
Checker plate machine for processing metal sheets of size 0.5-2.5 mm thickness, 1250 mm width and 3500 mm length.
Checkered Metal Sheets:
Send an e-mail, we will provide further detailed technical specifications and information for Checker Plate Machinery and Plant.
