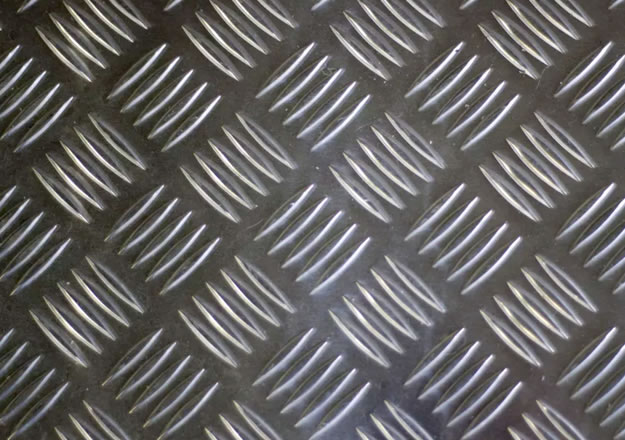

Five bar stainless steel checkered plate AISI 304, 316, Black SS

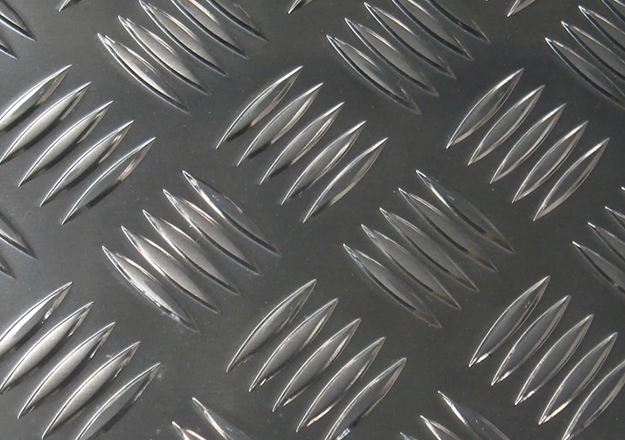

Five Bar Stainless Steel Checkered Plate offers excellent physical and chemical properties as well as functional anti-slippery properties. Stainless steel checkered plate sheet with five bar pattern has a bigger density of embossed pattern compared with single bar, two bar or three bar designs, hence, this kind of checkered ss plate offers superior anti skidding force over checkered plates with less bar number pattern. Stainless steel checkered plate five bar sheets are mainly used for food industry equipment, ordinary chemical equipment, building, householdeffects, dinnerware, cupboard, water heater, bathtub and architectural designs.
Features:
1. Corrosion resistance and alkaline resistance.
2. Strong.
3.Antirust
4.High temperature resistant 1000-1200 degrees.
5. A variety of patterns both for anti skidding and decorative effects.
Standard followed: AISI, ASTM, JIS, SUS,GB
Material:
SUS304 304L 316 316L 317 317L 309S 310 430, etc.
Plate or Sheet Width:
1219mm,1250mm,1500mm,2000mm or as request
Plate or sheet thickness:
0,3mm-12mm
Length: 2000mm,2438mm,3000mm,6000mm or as request
304 /304L SS Chemical Composition
| C | Si | Mn | Cr | Ni | S | P | |
| 304 | ≤0.07 | ≤1.0 | ≤2.0 | 17.0 - 19.0 | 8.0 - 11.0 | ≤0.03 | ≤0.035 |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | 18.0 - 20.0 | 9.0 - 13.0 | ≤0.03 | ≤0.035 |
Stainless Steel 304 Mechanical properties
| Material | SUS304 |
| tensile strength (Mpa) | 520 |
| yield strength (Mpa) | 205 - 210 |
| Elongation (%) | 40% |
| Hardness | HB 187, HRB 90, HV200 |
| Density (g/cm³ ) | 7.93 |
| melting point | 1398 - 1420 |
| Cr (%) | 17.00 - 19.00 |
| Ni (%) | 8.00 - 10.00 |
Our standard and customized 5 bar stainless steel chequered plates
We supply five bar checkered stainless steel plates made of SUS 304, 316 series and black ss materials.
BLK SS Checker Plate
Pattern: Five Bar
Sheet size: 1200x2400mm, thickness 1.4mm
Carbon steel 20 mm thick checker plate
Stainless steel 8 mm thick checkered plate
5 Bar Checker Plate SS 304
Sheet: 2000 x 1000 x 5 mm
Destination: Indonesia
5 bars Stainless Steel Diamond Plate, AISI 304 type
1.6mm 5 bar Stainless steel checker plate cut to the dimensions specified for wall cladding
Checkered 5 Bar Stainless Steel Plate, SS316L
Specification: ASTM A420, SS316L
8mm thick + 2mm checker height
Sizes: 2 X 6 M, 2.5 X 6 M and 1.5 X 6 M
Pattern: Five bar
