Checkered Plates for Flooring - Floor Checker Plate

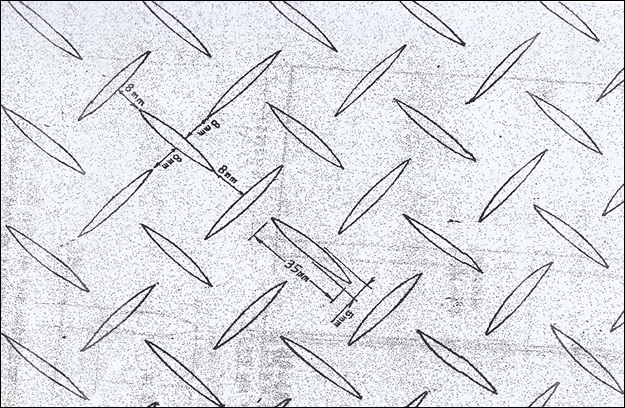

Floor Checker Plate, sized as 4500 X 2230 X 5.00 mm thickness of which will be 4-4.5 mm without checker and with checker the thickness will be 5-5.2 mm. Length of checkers will be 35 mm and width will be 5 mm and distance between the checkers will be 8 mm.
Standard Grade & Size: We supply Q195 and Q235 checker plate in sheet thickness from 1.25mm to 12mm. The maximum width of our checker plate is 150mm.
ASTM A36

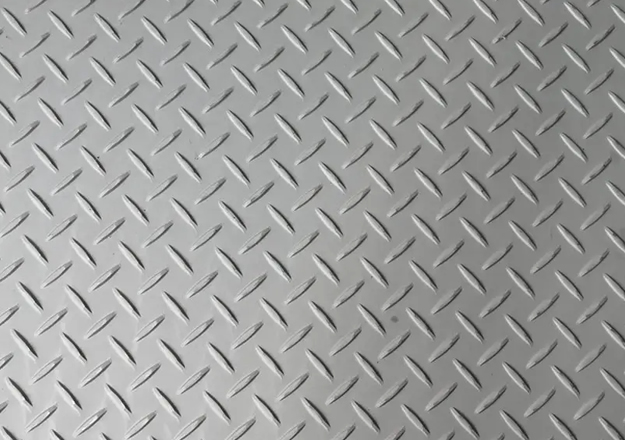

Diamond Checkered Plates
Checkered Plates 12 mm :
Material Grade : ASTM A36.
Thickness : 12 mm.
Shape/Dimensions : two-way raised pattern, pattern shall be conform to ASTM A786
Bearing bar for flooring : plate 6 mm x 50 mm or 12 mm x 25 mm.
Trim band for flooring : plate 6 mm x 25 mm or 12 mm x 25 mm.
Backing plates for flooring: plate 3 mm x 25 mm.
Toe plate around opening : plate 6 mm x 100 mm.
Checkered Plates 8 mm (optional):
Material Grade : ASTM A36.
Thickness : 8 mm.
Shape/Dimensions : two-way raised pattern, pattern shall be conform to ASTM A786
Aluminium Checker Plates for following Items
Chequerd Plate, Raised pattern type: Five bar
Size: 8’ x 4’ x 5 mm Thk. Material Al. 6061
Chequerd Plate, Raised pattern type: Five bar
Size: 8’ x 4’ x 5 mm Thk. Material : Al. 3003
Chequerd Plate, Raised pattern type: Five bar
Size: 8’ x 4’ x 5 mm Thk. Material : Al. 1060
Aluminium Checker plates ( 5 Pattern ) Grade 5754 H114 - 5 mm thickness
We offer stainless steel, steel, and aluminium checker plate 1000x20000
Plates steel Checkered Quality ASTM
size 6.35 x 4' x 8'
the mill has to deliver ISO 9001 certification

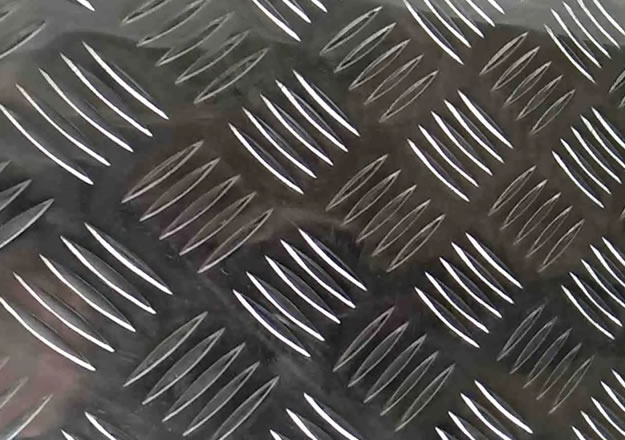

3mm and 6mm Checker plate (5 bar)
raised pattern height for a 3/8" thick ASTM A36/786 checkered plate
1 bar and 2 bar checke plate sheets an d size of sheet to use it on cupboards
2mm thk galvanised/zinc coated steel chequer plate.
Checkered plate metal flooring as following:
Item Specifications :
Checkered Plate
Size : 1/4IN THK. X 4FT W X 10FT L
Structural Steel Plate : Floor
Specification : As per ASTM A36 ( LATEST ), Inland 4-Way
Large pattern required.

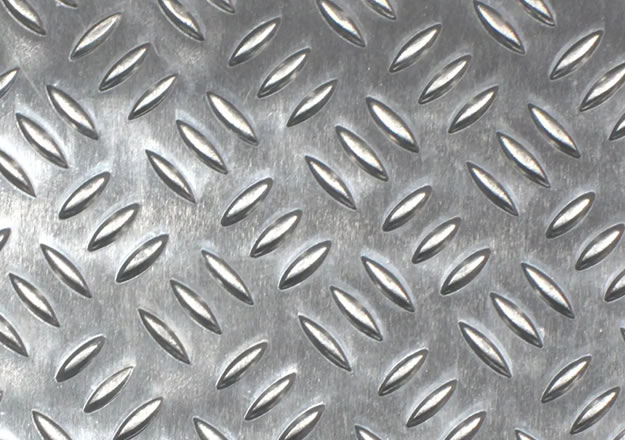

Three bar rib pattern aluminum checkered plate
Stainless steel 8 mm thick 5 bar checkered plate
