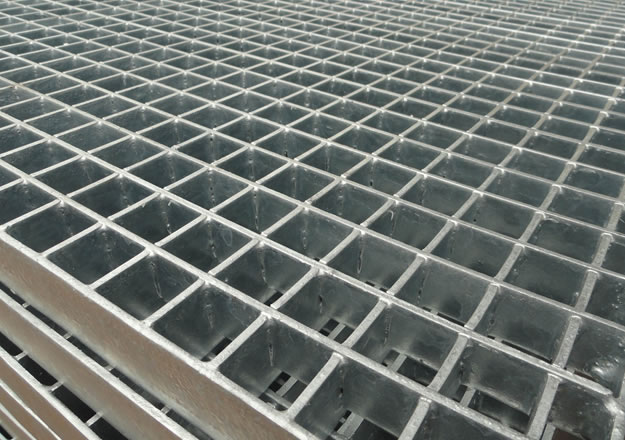

Steel Bar Grating Floor Panels Serrated Hot Dipped Galvanized
Bar type flooring panels are welded from carbon steel treated with hot dipped galvanized coating protection. Bar type flooring is a kind of open steel grating structural sheet widely used in construction of walkway flooring, platform decking and various engineering. The serrated bar grating offers a non-slippery safety flooring in decks, scaffold, ladder rungs, trailer steps and truck access applications.
Steel Bar Grating Type Flooring Panels General Introduction
Bearing Bar: 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10 to 100x10mm
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc.
Bar grating panels US Standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'', etc.
Bearing Bar Pitch: 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm, more.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch: 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' , more sizes.
Material Grade: ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, mild steel and low carbon steel.
Our standard and custom bar grating floor products
Open Steel Flooring
Manufacturing process: PRESSURE WELDING
Base material: STEEL
Spec BS 4360 GRADE 43A
DIN 17100 -ST.52-3U
Coating: HOT DIP GALVANIZED
Standard, external, coating BS 729
Weight, coating 815 g/m2
Pitch, load-bearing bars 33 mm
Pitch, transverse bars 100 mm
Bar arrangement 33/100
Type, load-bearing bars SERRATED
Size, load-bearing bars 35 mm X 5 mm
Type, transverse bars SQUARE TWISTED
Size, transverse bars 6 mm X 6 mm
Type, binding bar BANDED
Size, binding bar 35 mm X 5 mm
Span, panel 915 mm
Width, panel 905 mm
Electro forged Grating (Standard Panel) – Open Ends Grade S275JR
Load Bar Size : 30 x 3mm
Load Bar Type : Serrated
Cross Bar Size : 6mm twisted square
Bearing bar x Cross bar Pitch (c/c) : 30 x 50mm
Finish : Hot Dip Galvanized

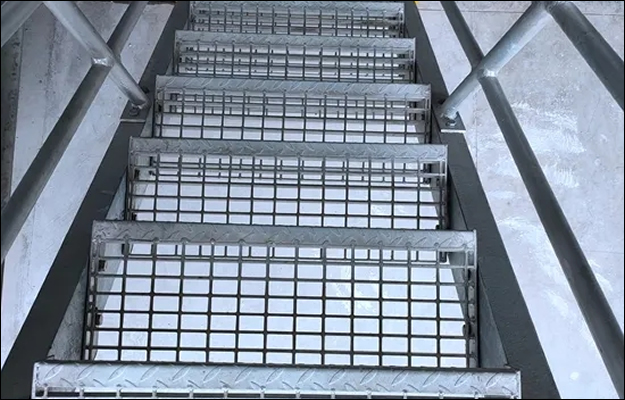

Steel Grating Panels for Stair Tread Grade S275JR
Tread flooring type: Bar grating panels
Load Bar Size : 30 x 3mm
Load Bar Type : Serrated
Cross Bar Size : 6mm twisted square
Load bar x cross bar pitch (c/c) : 30 x 50mm
End Plate : 70 x 5mm
Nosing type: Chequered plate -5mm thick
Finish : Hot Dip Galvanized
